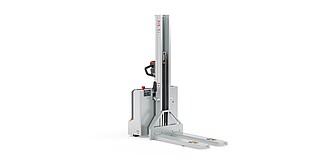

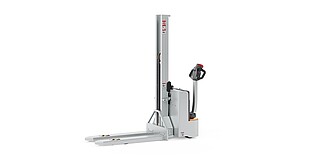

High Lift Pallet Truck ECV 10(i)C
Lifting Made Easy
- Load capacity 1000 kg
- Rated lift 1867 mm
- Speed 4.5 km/h
Are you looking for a starter truck in the world of pallet stackers? Allow us to introduce the ECV 10C, our most compact high lift pallet truck which can master applications in the narrowest working areas with ease. The mono mast provides the best possible view of the fork tips so the operator can position them accurately into the pallet. The compact ECV 10C is also equipped with automatic lift-height-dependent speed reduction for maximum transport safety. With a mono mast and a maximum lifting capacity of up to 1,000 kg it can be used for a wide range of applications. Whether being used for stacking applications up to 1,867 mm or to provide ergonomic support as a mobile workbench, the ECV 10C is an all-rounder. The easy-grip tiller for left- and righthanded operators enables precise operation of all of the driving and lifting functions. The ECV 10C also performs well in terms of availability because it always has the necessary amount of power thanks to its built-in charger. The battery can be recharged conveniently and simply at any standard socket. The ECV 10iC version of the compact high lift pallet truck is optionally available with initial lift function for easy negotiation of thresholds, uneven surfaces and ramps.
Flexible down to the tips of the forks:
Be it light stacking tasks up to 1,867 mm or used as a mobile workbench
Our most compact high lift pallet truck:
Because of the extremely small front end it impresses even in the tightest working areas
Go anywhere:
With the optional initial lift on the ECV 10iC variant, slopes and thresholds are easily mastered
Request to: ECV 10(i)C
Please fill out the form below. We will get back to you as soon as possible.
The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency
Simply easy
Handle gradients with ease
thanks to the optional initial lift function on the ECV 10iC
Low service weight
enables smooth steering
Both left- and right-handed
users can intuitively operate all of the driving, lifting and lowering functions
Tandem load rollers
provide for smooth driving behaviour on uneven ground
Low steering forces when manoeuvring
relieve the stress on the operator
Simply powerful
Effective goods handling
thanks to a load capacity of up to 1,000 kg
High degree of storage compression
thanks to maximum lift heights of up to 1,863 mm on the ECV 10iC
Maintenance-free batteries
save precious time
Simply safe
Optimum stability
thanks to four-wheel chassis
Optimum view of the forks
thanks to free view mast or mono mast
Fatigue-free operation of all driving, lifting, and lowering functions
for both left- and right-handed operators
The low chassis frame protects the feet
of operators and third parties in public areas
Lift height-dependent speed reduction
increases safety
No battery gassing
– this protects operators and the environment
Simply flexible
Compact front end
enables use in tight working areas and narrow aisles
Possible use on mezzanine floors
due to low service weight
The built-in charger allows for flexible and decentralised charging
of the forklift truck
Simply connected
Battery charge display:
Battery status is quick and easy to read so batteries can be charged in good time whenever necessary
Request to: ECV 10(i)C
Please fill out the form below. We will get back to you as soon as possible.
| Model | Maximum capacity (kg) | Maximum lift height (mm) | Travel speed (km/h) | Battery voltage (V) |
|---|---|---|---|---|
| ECV 10 C | 1.000 | 1.867 | 4.5 | 2*12 |
| ECV 10i C | 1.000 | 1.863 | 4.5 | 2*12 |
Downloads
The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
